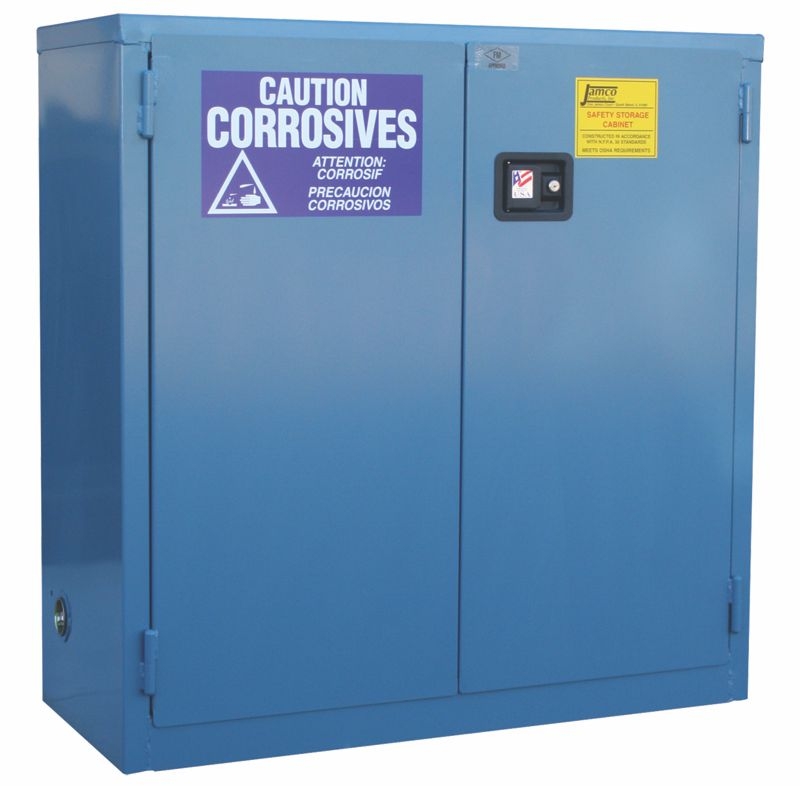

Shop Our Categories www.DCGraves.com Search site Home My Account FAQ / Help About DC Graves Co. Request a Quote Contact Us Installation Services Submit Search Nav Menu 3 Nav Menu 4 Nav Menu 5 Nav Menu 6 Nav Menu 7 Nav Menu 8 Home > Safety Flammable Cabinets > Safety Flammable Cabinets for Corrosives & Pesticides > Series CS - Safety Flammable Cabinet with Self Close Doors for Corrosives All welded double wall 18 gauge construction with 1-1/2" insulating air space. 2" leak proof sill to contain leaks. Lockable flush mounted handle (gripper pad) with 2 keys. Doors have 3 point locking system and radius corners, open full 180 ° Doors are double walled, 14 gauge outside with 18 gauge inside. 4" heavy duty welded hinges with brass pins. Two 2" flame arrester vents. Adjustable leveling feet and grounding connector. Powder coated blue finish. Safety signage in large white letters. Galvanized steel shelves adjust on 2-1/2" centers. Polyethylene tray liner for all shelves and sill. Meets OSHA, NFPA code 30 & UFC 79 standards All flammable liquids storage models 23" long have (1) door, all other models have (2). Self close doors (shut, index (2 door models only), and latch automatically as fusible link melts under fire conditions at 165°). Chemical storage maximum - Class I & II - 60 gallons, Class III - 120 gallonsWorks great as pesticide storage cabinets Model CS - Safety Flammable Cabinet with Self Close Doors for Corrosives Model Gallon Capacity L x W x H # of Shelves Weight CS06 6 23" x 18" x 22" 0 98-lbs. CS12 12 23" x 18" x 35" 1 144-lbs. CS18 18 23" x 18" x 44" 2 182-lbs. CS24 24 23" x 18" x 65" 3 254-lbs. CS30 30 43" x 18" x 44" 1 274-lbs. CS45 45 43" x 18" x 65" 2 382-lbs. CS60 60 34" x 34" x 65" 2 470-lbs. Item# Item Name Price Each Qty Add CS06 Self Close Safety Cabinet for Corrosives, 6 Gallon Capacity $1,365.00 CS12 Self Close Safety Cabinet for Corrosives, 12 Gallon Capacity $1,630.00 CS18 Self Close Safety Cabinet for Corrosives, 18 Gallon Capacity $2,010.00 CS24 Self Close Safety Cabinet for Corrosives, 24 Gallon Capacity $2,315.00 CS30 Self Close Safety Cabinet for Corrosives, 30 Gallon Capacity $2,245.00 CS45 Self Close Safety Cabinet for Corrosives, 45 Gallon Capacity $2,705.00 CS60 Self Close Safety Cabinet for Corrosives, 60 Gallon Capacity $3,050.00 Check the items you wish to purchase, then click Share your knowledge of this product. Be the first to write a review »
